150M 180M pneumatic water well drilling rig drilling rig/dual-purpose water and air drilling rig
Lightweight, efficient, and versatile drilling equipmentEfficiency is more than ten times higher than that of traditional rotary drilling rigs
Able to work efficiently in various geological structures, such as hard rock layers, gravel, and pebble layers
Engine power: 52KW
Drilling depth Max: 180M
Drilling hole diameter: φ150-219
Drilling rod diameter: φ76
Drilling rod length: 3000mm
Working aire pressure: 1.5-2.5MPa
Air consumption: 15-30m3/min
Make your
request
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Pre-sale service
Sales support services
After sales service
Tip 1. Provide you with a free design solution. Tip
2. Technical guidance from a professional team.
150M 180M pneumatic water well drilling rig drilling rig/dual-purpose water and air drilling rig
- It is a lightweight, efficient and multifunctional drilling equipment.
- It is mainly suitable for drilling water wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially for water extraction projects in mountainous areas and rock formations.
- The efficiency is more than ten times higher than that of traditional rotary drilling rigs, creating considerable economic benefits for users.
- In particular, it solves the construction difficulties of rotary drilling rigs in hard rock layers, gravel and pebble layers, and can work efficiently in various geological structures.

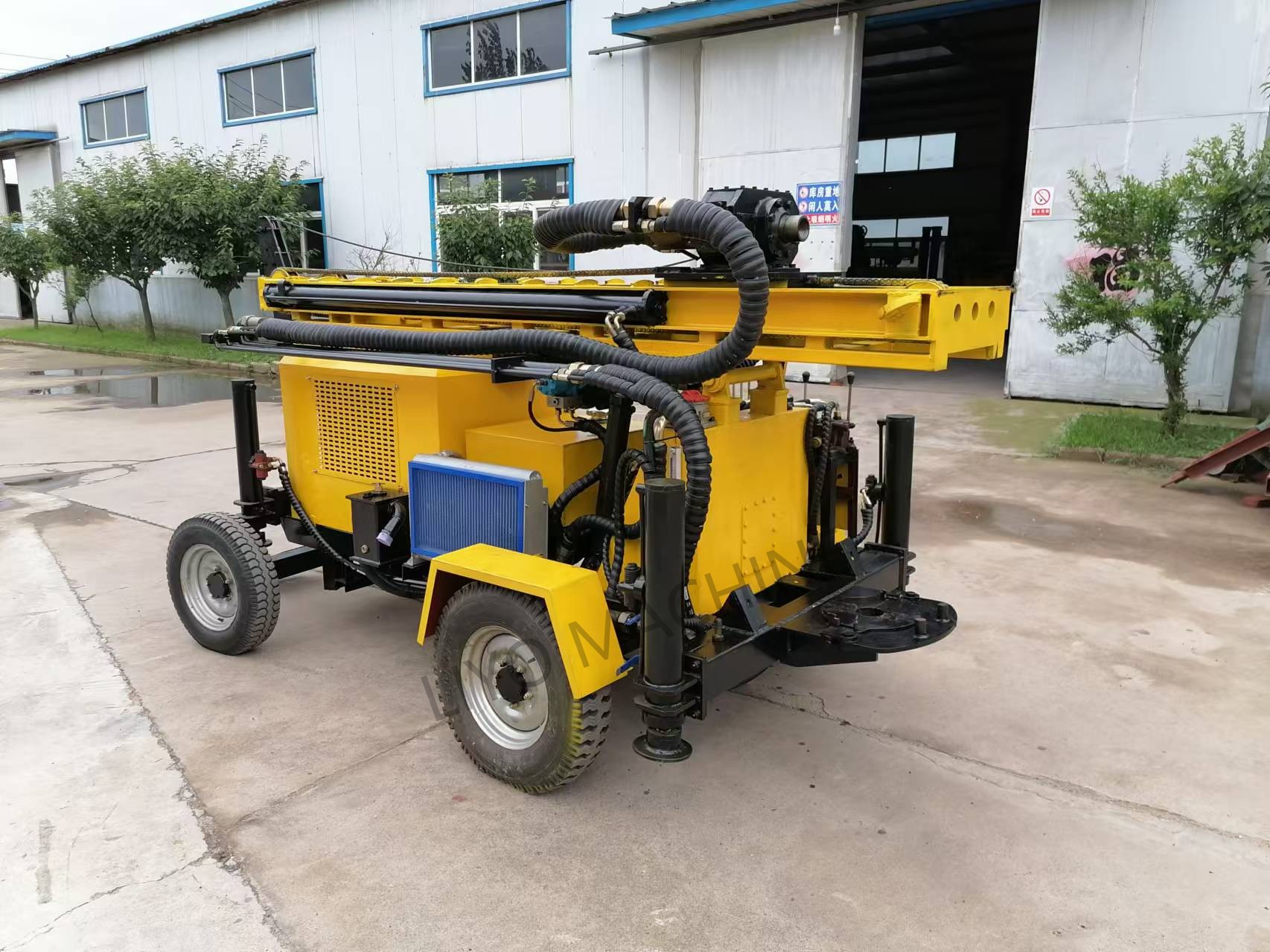

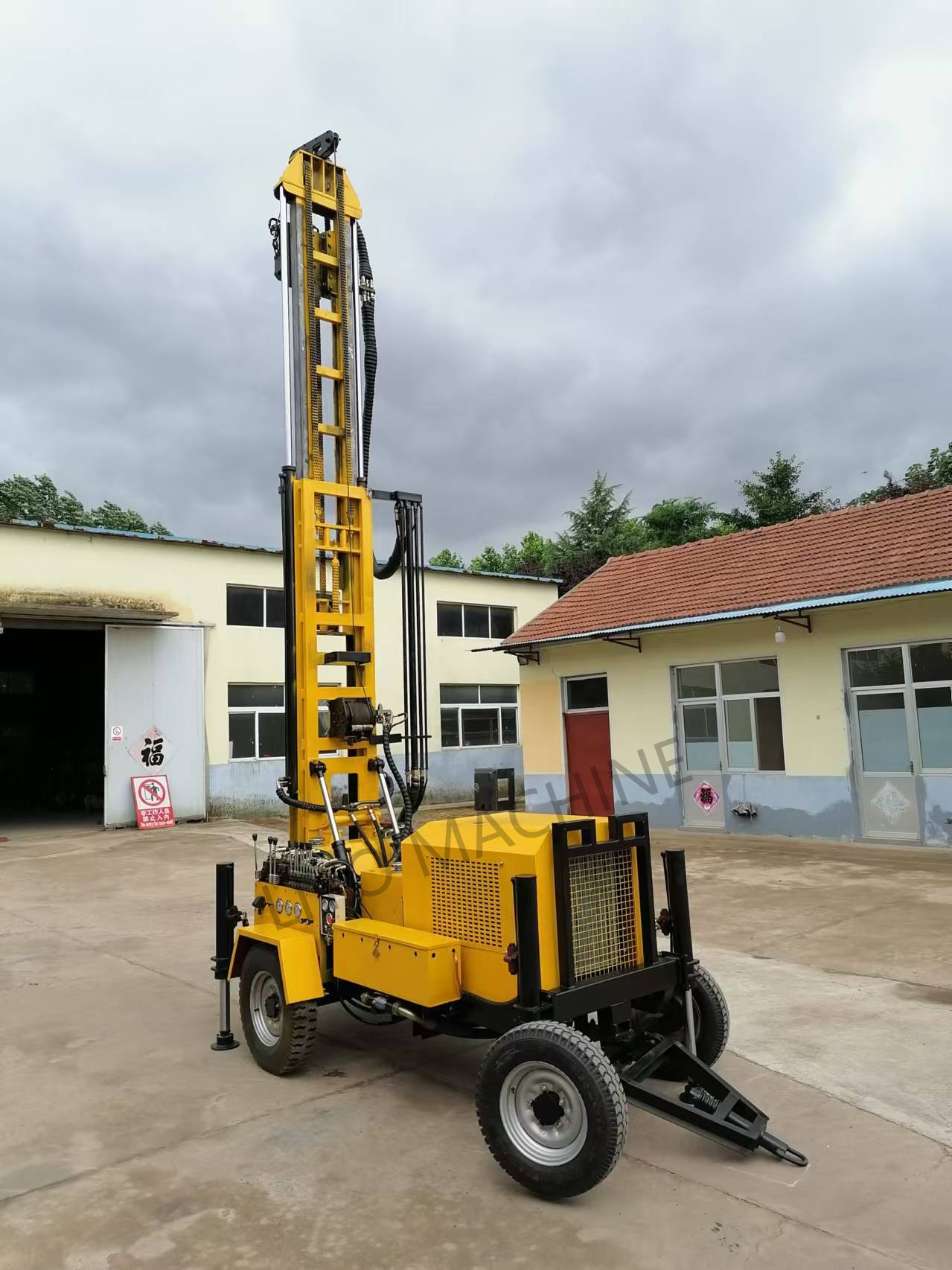

Trailer type

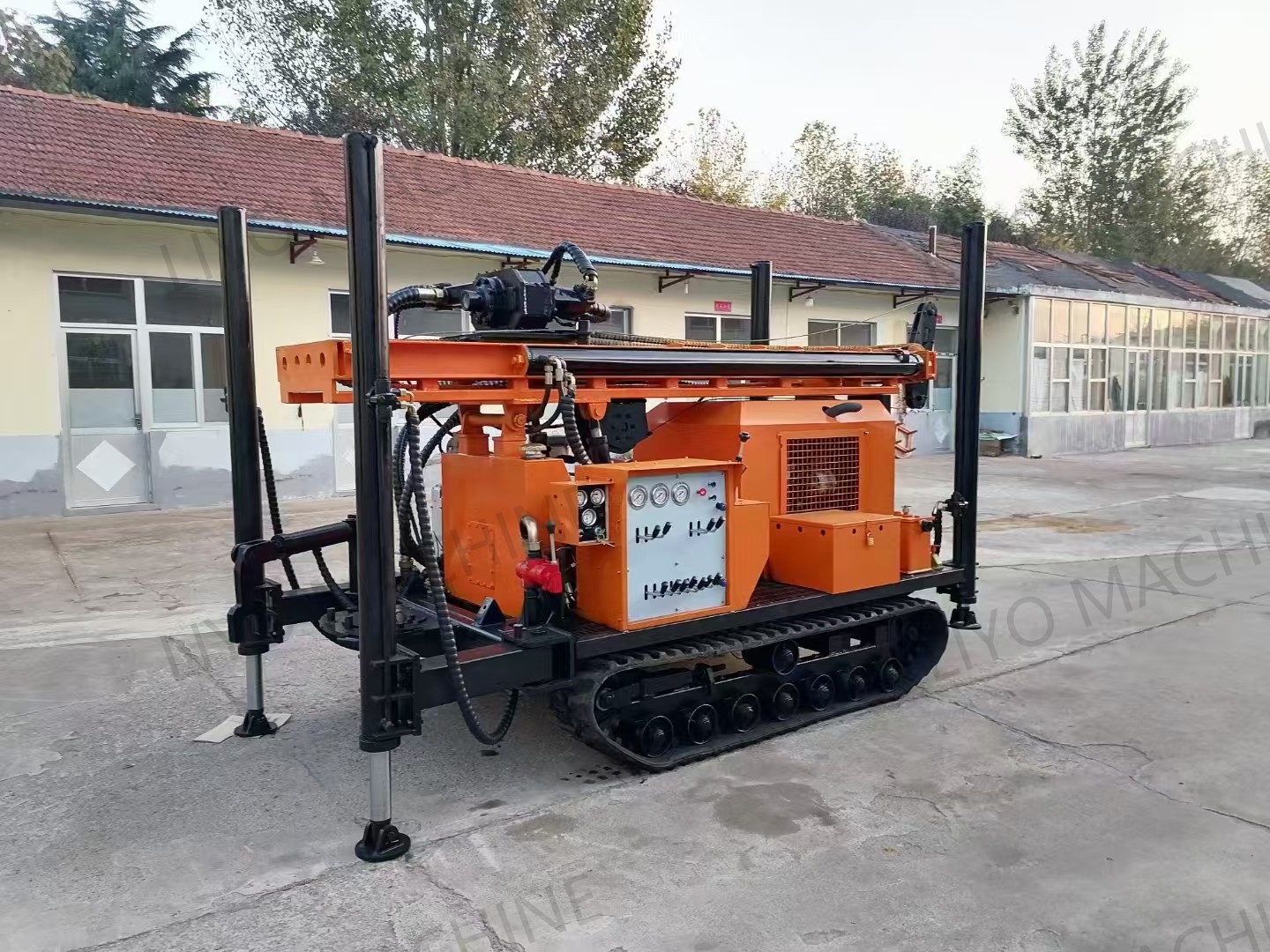

Crawler type

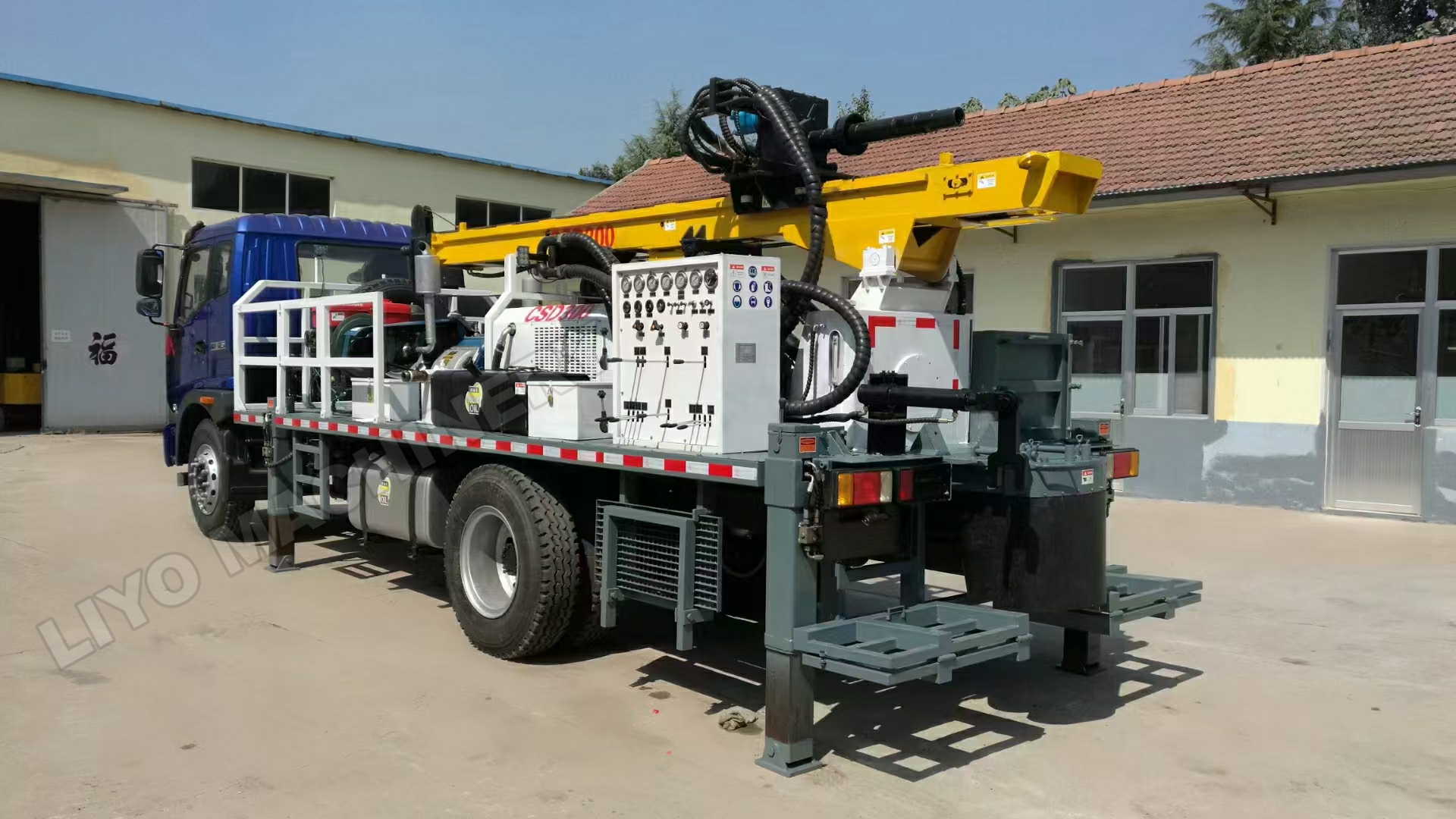

Truck mounted
Specification
No. | Item | Unit | Parameter | Remark |
1 | Max. drilling depth | m | 180 | End hole φ 180 |
2 | Drilling diameter | mm | φ150-219 |
|
3 | Adapt the length of the drill rod | mm | 3000 |
|
4 | Adapt drilling rod diameter | mm | φ76 |
|
5 | Work wind pressure | MPa | 1.5-2.5 |
|
6 | Total gas consumption | m3/ min | 15-30 |
|
7 | Impactor | / | DHD350\360 |
|
9 | Power model | / | 4105Z |
|
10 | Power | / | 52Kw/2200 rpm | About 70 PS |
11 | Speed of travel | km/ hr | ˂20 |
|
12 | Ground clearance | mm | 220 |
|
13 | Outrigger cylinder stroke | mm | 500 |
|
14 | Power head stroke | mm | 3500 |
|
15 | System rated pressure | MPa | 20 |
|
16 | Max. propulsion of the spindle | tonf | 6.0 |
|
17 | Max. lifting force of the spindle | tonf | 10 |
|
18 | Rotary speed | rpm | 40-90 | adjustable |
19 | Rotary torque | N·m | 2600 |
|

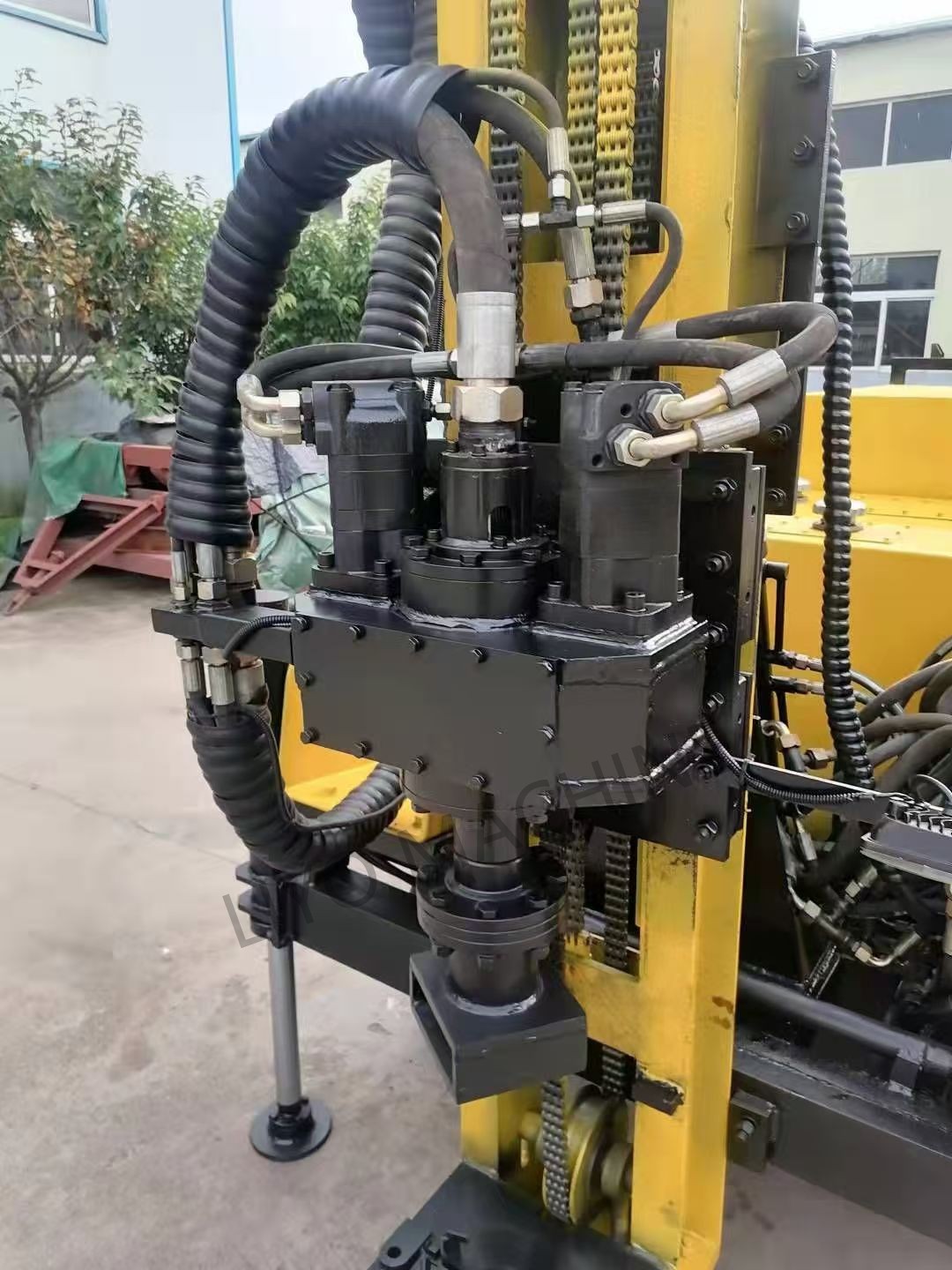

Power head
