300m-500m Deep Hole Wheel Type Water Well Drilling Rig With Mud Pump Underground Bore Drilling Machine for Rock Water Rig Drilling
1. The drilling rig adopts MW525 automobile gearbox assembly.2. Yunnei 490 automobile powertrain, with 10 speed levels and reasonable speed regulation range, large torque, strong bearing capacity, can realize long-distance control and speed change, and the operation is centralized and convenient.
Engine power: 42KW
Drilling depth：100m 250m 300m 600m
Drilling hole diameter: 300 200 150 75mm
Drilling rod: 50mm/60mm
Max. hole opening diameter: 300mm
Make your
request
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Excursion to
the plant
Pre-sale service
Sales support services
After sales service
Tip 1. Provide you with a free design solution. Tip
2. Technical guidance from a professional team.
300m-500m Deep Hole Underground Bore Drilling Machine Wheel Type Water Well Drilling Rig With Mud Pump
Advantages
★The drilling rig is equipped with lates MW525 type car transmission assembly, cloud 490 car powertrain, with 10 speed series and a reasonable speed range, large torque, strong bearing capacity, enabling long-distance manipulation of speed, centralized operation and convenient.
★ Equipped with a high-powered engine and featuring 2 reverse speeds, the drilling rig ensures ease of handling during accidents or unexpected situations.
★ The joystick control system is intelligently designed with a user-friendly layout and compactness, ensuring easy operation and reliable performance.
★ Benefit from a normally closed hydraulic chuck, enabling effortless and flexible operation during drilling operations.
★ Enjoy the convenience of independent operation for the vertical shaft and winch, providing versatility and adaptability for various drilling needs.
★ Wide vertical shaft diameter allows for the replacement of large, six active drill pipes, expanding drilling capabilities and enhancing productivity.

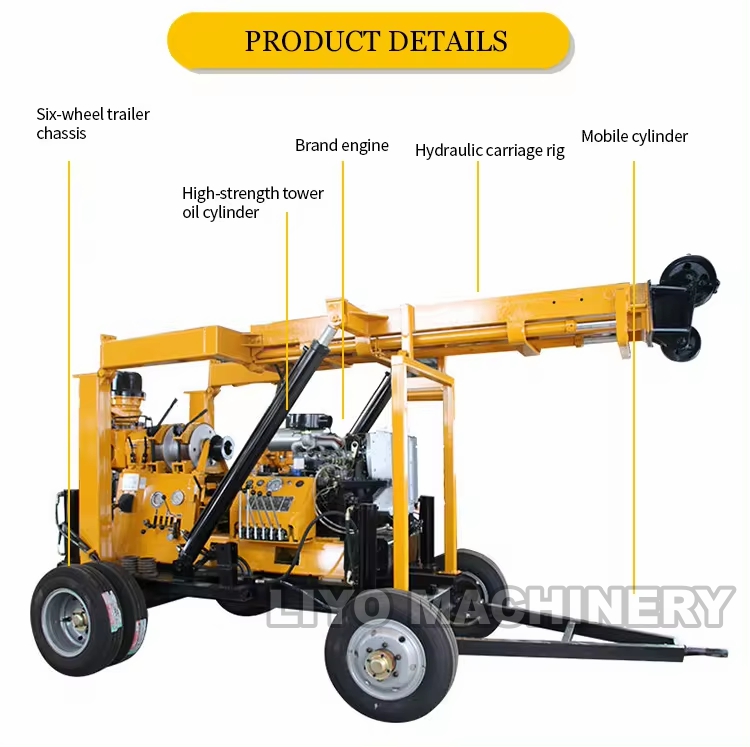

Drill rig structure
Drill rig motor

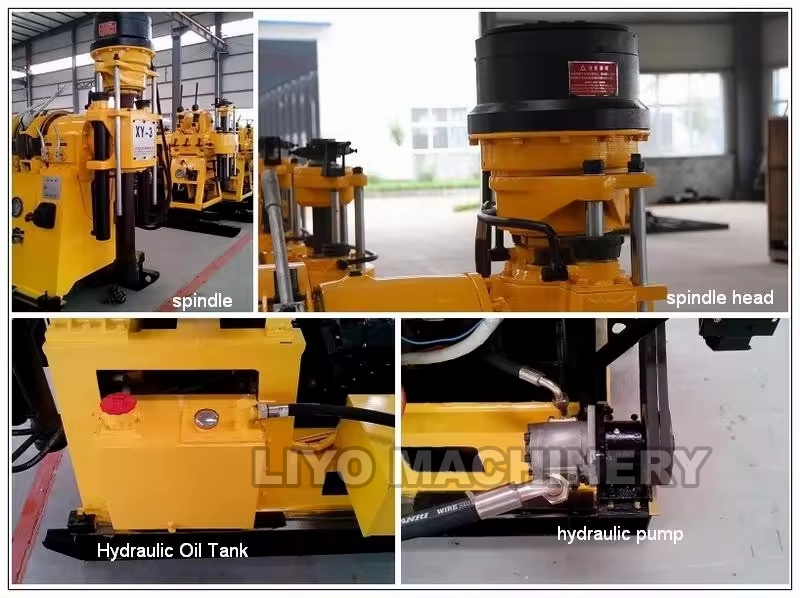

Drill rig spindle
Specifications
Machine parameters | |
Drilling depth | 530m |
Drilling diameter | 75-300mm |
Hole diameter | 300mm |
Final hole diameter | 75mm |
Drill pipe | Φ60 |
Drilling inclination | 90°--65° |
Vertical axis | |
Vertical axis forward speed | 32-1057r/min |
Vertical axis reversal speed | 29-137r/min |
Vertical axis travel | 600mm |
Vertical shaft bore diameter | 96mm |
Vertical axis to enhance ability | 60kN |
The main winch | |
Single rope to enhance speed | 0.5-1.9m/s |
Rope diameter | 12.5mm |
Single rope to enhance ability | 30kN |
Reel diameter | 300mm |
Reel capacity | 65m |
Mud pump (optional) | |
Horizontal three-cylinder BW-250 mud pump | BW-250 mud pump |
Displacement | 250L/min |
Work pressure | 80kgcm² |
Intake pipe diameter | 76mm |
Outlet diameter | 51mm |
Gear pump | |
Double gear pump | CBF-F63/25 |
Pre-flow pressure | 63L/min 20Mpa |
Post-flow pressure | 25L/min 20Mpa |
Rig power | |
Diesel engine | CloudYN27/power 42kw / 2400rpm |
Motor | Y180L-4/22kW/1470rpm |
Weight size | |
Rig weight | 3600KG |
Dimensions | 2900×2560×3300mm |
